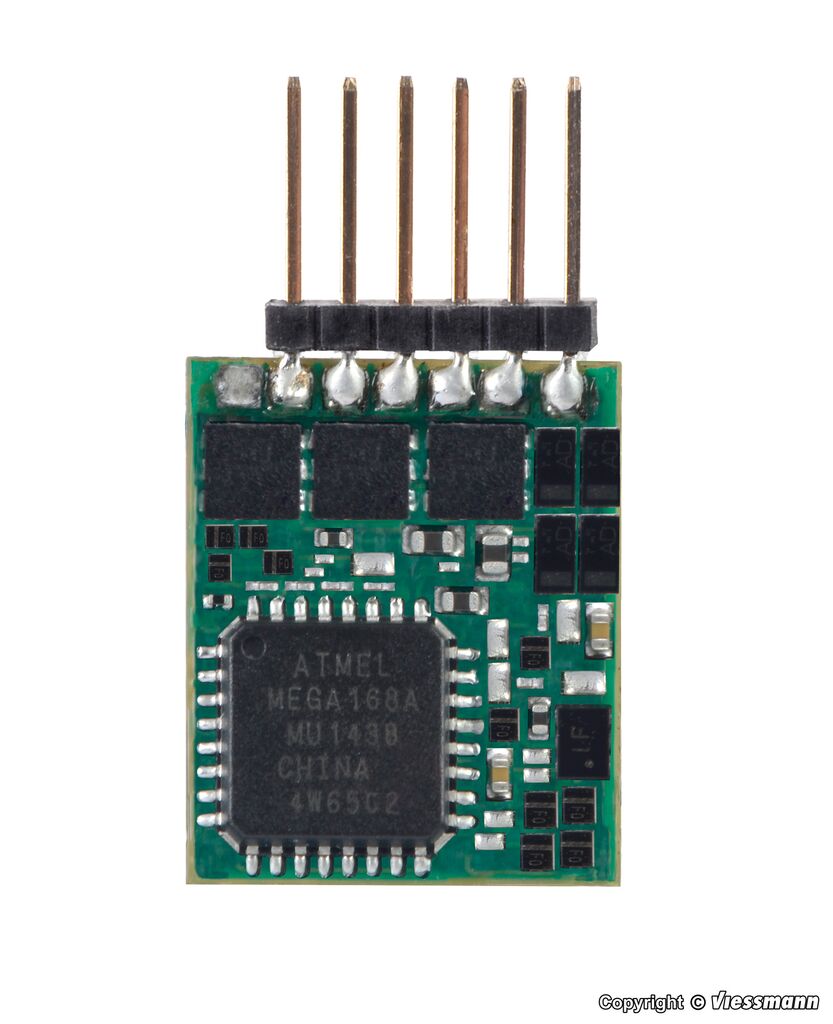

Viessmann - 6 Pin Locomotive Decoder
This item is in Stock and available for dispatch
RRP £38.50
Our Price
£34.64
Our Price
£34.64
Miniature multi protocol locomotive decoder suitable for RailCom, DC, DCC (2 and 4 -digit addresses) and Märklin Motorola, with automatic protocol recognition.
Adjustable minimum and maximum speeds as well as a freely programmable speed step table (28 steps), adjustable high frequency load regulation, also suitable for coreless motors, with 14, 28 and 128 speed steps and shunting mode.
Drive current 0.5 A continuously, 0.8 A peak. 2 function outputs for lights depending on direction, with additional features: Function mapping, dimming, flashing.
The max. current of the function outputs is 300 mA. All outputs are protected against overloading, in addition the decoder is protected against overheating.
The decoder has a SUSI interface, as well as a connection for external energy storage, as soldering pads.
Decoder identical to item 5296, but with 6-pole plug according to Miniature multi protocol locomotive decoder suitable for RailCom, DC, DCC (2 and 4 -digit addresses) and Märklin Motorola, with automatic protocol recognition.
Adjustable minimum and maximum speeds as well as a freely programmable speed step table (28 steps), adjustable high frequency load regulation, also suitable for coreless motors, with 14, 28 and 128 speed steps and shunting mode.
Drive current 0.5 A continuously, 0.8 A peak. 2 function outputs for lights depending on direction, with additional features: Function mapping, dimming, flashing.
The max. current of the function outputs is 300 mA. All outputs are protected against overloading, in addition the decoder is protected against overheating.
The decoder has a SUSI interface, as well as a connection for external energy storage, as soldering pads.
Decoder identical to item 5296, but with 6-pole plug according to NEM 651 S.
Current Rating - Avg 0.5 Amps , Peak 0.8 Amps
Connector - NEM 651
Functions - 2 (0.3Amps Total Max)
Adjustable minimum and maximum speeds as well as a freely programmable speed step table (28 steps), adjustable high frequency load regulation, also suitable for coreless motors, with 14, 28 and 128 speed steps and shunting mode.
Drive current 0.5 A continuously, 0.8 A peak. 2 function outputs for lights depending on direction, with additional features: Function mapping, dimming, flashing.
The max. current of the function outputs is 300 mA. All outputs are protected against overloading, in addition the decoder is protected against overheating.
The decoder has a SUSI interface, as well as a connection for external energy storage, as soldering pads.
Decoder identical to item 5296, but with 6-pole plug according to Miniature multi protocol locomotive decoder suitable for RailCom, DC, DCC (2 and 4 -digit addresses) and Märklin Motorola, with automatic protocol recognition.
Adjustable minimum and maximum speeds as well as a freely programmable speed step table (28 steps), adjustable high frequency load regulation, also suitable for coreless motors, with 14, 28 and 128 speed steps and shunting mode.
Drive current 0.5 A continuously, 0.8 A peak. 2 function outputs for lights depending on direction, with additional features: Function mapping, dimming, flashing.
The max. current of the function outputs is 300 mA. All outputs are protected against overloading, in addition the decoder is protected against overheating.
The decoder has a SUSI interface, as well as a connection for external energy storage, as soldering pads.
Decoder identical to item 5296, but with 6-pole plug according to NEM 651 S.
Current Rating - Avg 0.5 Amps , Peak 0.8 Amps
Connector - NEM 651
Functions - 2 (0.3Amps Total Max)
Manufacturer : Viessmann
SKU : 5297
EAN : 4026602052977
SKU : 5297
EAN : 4026602052977
